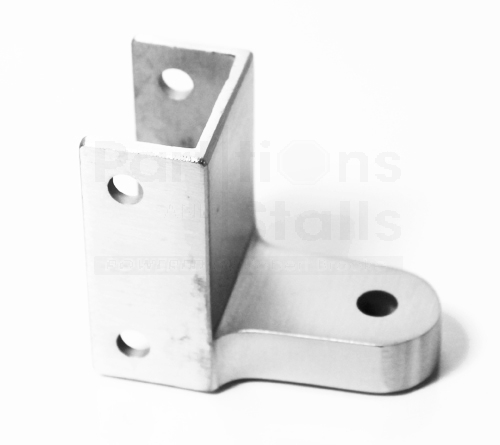

Toilet Partition Bottom Hinge for 1-1/4" Sq Edge Cast Stainless Steel

In stock

Part #

9A3293
$23.00

Description

The Toilet Partition Bottom Hinge for 1-1/4" Sq Edge Cast Stainless Steel is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.  It features cast stainless steel construction, which is much more durable.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.  Shipped with mounting screws.  A=1-5/8"

The Toilet Partition Bottom Hinge for 1-1/4" Sq Edge Cast Stainless Steel is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.  It features cast stainless steel construction, which is much more durable.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.  Shipped with mounting screws.  A=1-5/8"

More Information
Part # 9A3293
Availability In Stock
Manufacturer General Toilet Partition
Description

The Toilet Partition Bottom Hinge for 1-1/4" Sq Edge Cast Stainless Steel is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.  It features cast stainless steel construction, which is much more durable.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.  Shipped with mounting screws.  A=1-5/8"

Detailed Description

The Toilet Partition Bottom Hinge for 1-1/4" Sq Edge Cast Stainless Steel is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.  It features cast stainless steel construction, which is much more durable.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.  Shipped with mounting screws.  A=1-5/8"
