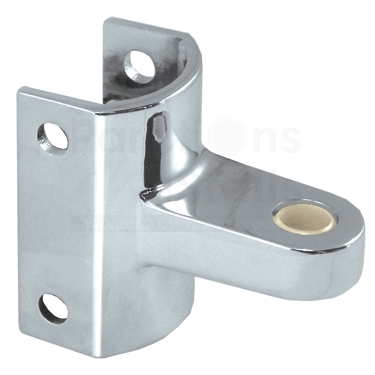

Global Partitions Top Hinge
Description
The Global Partitions Top Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and then polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510. Shipped with mounting screws. A=1-7/6"
The Global Partitions Top Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and then polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510. Shipped with mounting screws. A=1-7/6"
| Part # | 9G0225 |
|---|---|
| Availability | In Stock |
| Manufacturer | Global Toilet Partition |
| Description | The Global Partitions Top Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and then polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510. Shipped with mounting screws. A=1-7/6" |
| Detailed Description | The Global Partitions Top Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and then polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510. Shipped with mounting screws. A=1-7/6" |
