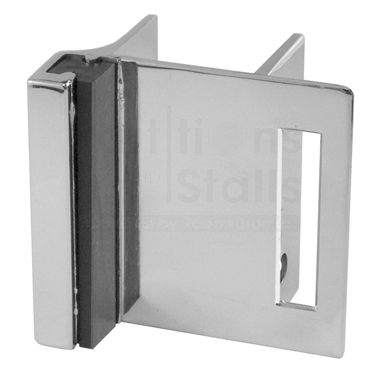

General Toilet Partition Keeper Bumper For 1-1/4" Inswing Sq Edge
Description
The General Toilet Partition Keeper Bumper For 1-1/4" Inswing Sq Edge is for use on 1-1/4" thick square edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and polished. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110. Shipped with mounting screws.
The General Toilet Partition Keeper Bumper For 1-1/4" Inswing Sq Edge is for use on 1-1/4" thick square edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and polished. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110. Shipped with mounting screws.
| Part # | 920601 |
|---|---|
| Availability | In Stock |
| Manufacturer | General Toilet Partition |
| Description | The General Toilet Partition Keeper Bumper For 1-1/4" Inswing Sq Edge is for use on 1-1/4" thick square edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and polished. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110. Shipped with mounting screws. |
| Detailed Description | The General Toilet Partition Keeper Bumper For 1-1/4" Inswing Sq Edge is for use on 1-1/4" thick square edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and polished. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110. Shipped with mounting screws. |
