Flush Metal Partition Top Hinge
Description

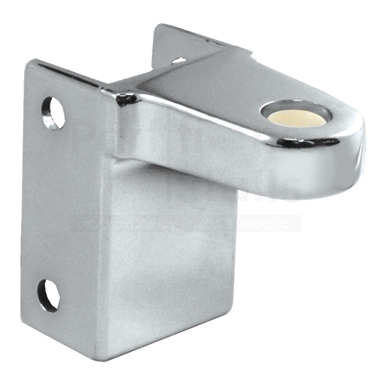

The Flush Metal Partition Top Hinge is for use on 1-1/4" square edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and polished. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790. A=1-5/8"
The Flush Metal Partition Top Hinge is for use on 1-1/4" square edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and polished. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790. A=1-5/8"
| Part # | 9FL600 |
|---|---|
| Availability | In Stock |
| Manufacturer | Flush Metal Partitions |
| Description | The Flush Metal Partition Top Hinge is for use on 1-1/4" square edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and polished. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790. A=1-5/8" |
| Detailed Description | The Flush Metal Partition Top Hinge is for use on 1-1/4" square edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and polished. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790. A=1-5/8" |
