Flush Metal Partition Top Hinge Casting
Description

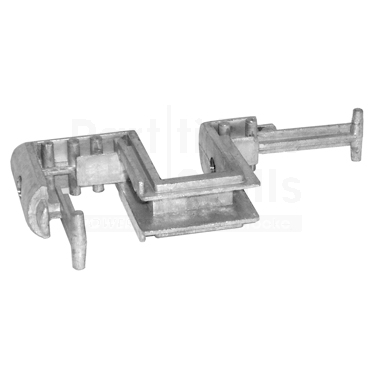

The Flush Metal Partition Top Hinge Casting is for use on there metal restroom stalls. It is constructed of Zamac die cast metal. The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.
The Flush Metal Partition Top Hinge Casting is for use on there metal restroom stalls. It is constructed of Zamac die cast metal. The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.
| Part # | 9FL265 |
|---|---|
| Availability | In Stock |
| Manufacturer | Flush Metal Partitions |
| Description | The Flush Metal Partition Top Hinge Casting is for use on there metal restroom stalls. It is constructed of Zamac die cast metal. The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556. |
| Detailed Description | The Flush Metal Partition Top Hinge Casting is for use on there metal restroom stalls. It is constructed of Zamac die cast metal. The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556. |
