Flush Metal Partition Bottom Hinge
Description

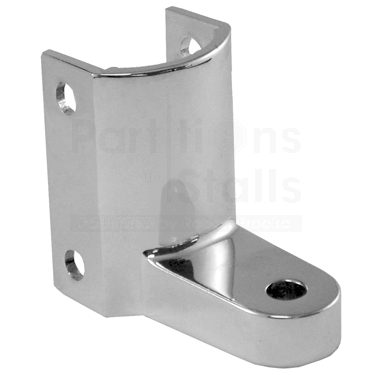

The Flush Metal Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed on Zamac die cast metal that is chrome plated and polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010. Shipped with mounting screws. A=1-7/6".
The Flush Metal Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed on Zamac die cast metal that is chrome plated and polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010. Shipped with mounting screws. A=1-7/6".
| Part # | 9FL200 |
|---|---|
| Availability | In Stock |
| Manufacturer | Flush Metal Partitions |
| Description | The Flush Metal Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed on Zamac die cast metal that is chrome plated and polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010. Shipped with mounting screws. A=1-7/6". |
| Detailed Description | The Flush Metal Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed on Zamac die cast metal that is chrome plated and polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010. Shipped with mounting screws. A=1-7/6". |
