Continuous One Ear Bracket Aluminum, 1 1/4" X 2-3/4" x 57-1/2"

In stock

Part #

9A0184C
$92.35

Description

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

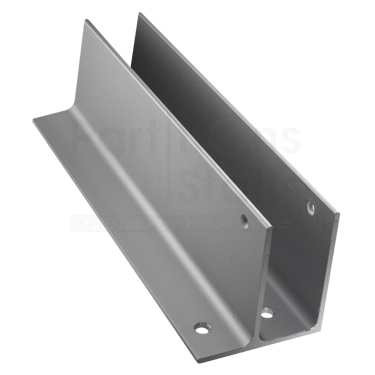

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

More Information
Part # 9A0184C
Availability In Stock
Return Policy Returnable
Manufacturer Generic
Special Shipping Type Freight
Description

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Detailed Description

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.
