Continuous Hinge Stainless Steel, 54" -Rh Outswing/Lh Inswing
Description

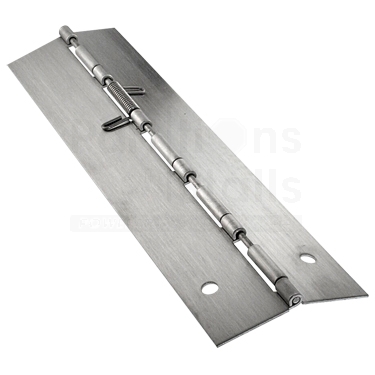

The Continuous Hinge Stainless Steel, 54" is for use on Right Hand Outswing/ Left Hand Inswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel. The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing. This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7969.
The Continuous Hinge Stainless Steel, 54" is for use on Right Hand Outswing/ Left Hand Inswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel. The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing. This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7969.
| Part # | 9A70C4 |
|---|---|
| Availability | In Stock |
| Manufacturer | Generic |
| Special Shipping Type | Freight |
| Description | The Continuous Hinge Stainless Steel, 54" is for use on Right Hand Outswing/ Left Hand Inswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel. The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing. This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7969. |
| Detailed Description | The Continuous Hinge Stainless Steel, 54" is for use on Right Hand Outswing/ Left Hand Inswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel. The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing. This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7969. |
