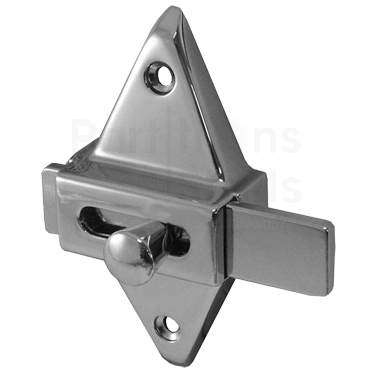

Ampco Toilet Partition Slide Bolt Latch
Description
The Ampco Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws.
The Ampco Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws.
| Part # | 9CP100. |
|---|---|
| Availability | In Stock |
| Manufacturer | Ampco Toilet Partition |
| Description | The Ampco Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws. |
| Detailed Description | The Ampco Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated. Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020. Shipped with mounting screws. |
