Ampco Partitions Bottom Cam Housing Chrome Plated
Description

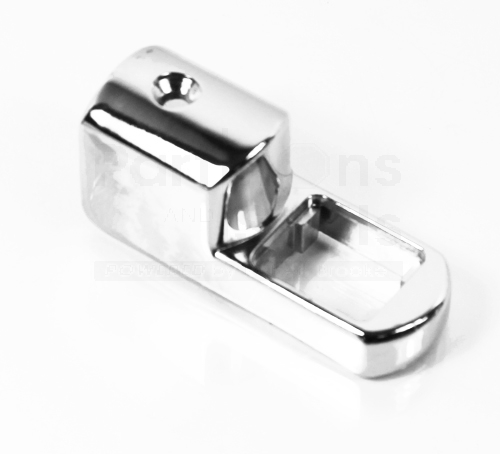

The Ampco Partitions Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal and then chrome plated. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060
The Ampco Partitions Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal and then chrome plated. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060
| Part # | 91005BC. |
|---|---|
| Availability | In Stock |
| Manufacturer | Ampco Toilet Partition |
| Description | The Ampco Partitions Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal and then chrome plated. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060 |
| Detailed Description | The Ampco Partitions Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal and then chrome plated. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060 |
