American Sanitary Toilet Partition Top Hinge
Description

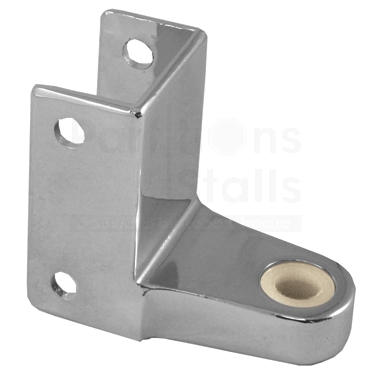

The American Sanitary Toilet Partition Top Hinge is constructed of Zamac die cast metal that is chrome plated then polished. The hinge is designed for use on an 1-1/4" thick pilaster post. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a American Sanitary Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790. A=1-5/8"
The American Sanitary Toilet Partition Top Hinge is constructed of Zamac die cast metal that is chrome plated then polished. The hinge is designed for use on an 1-1/4" thick pilaster post. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a American Sanitary Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790. A=1-5/8"
| Part # | 9AM175 |
|---|---|
| Availability | In Stock |
| Manufacturer | American Sanitary Toilet Partition |
| Description | The American Sanitary Toilet Partition Top Hinge is constructed of Zamac die cast metal that is chrome plated then polished. The hinge is designed for use on an 1-1/4" thick pilaster post. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a American Sanitary Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790. A=1-5/8" |
| Detailed Description | The American Sanitary Toilet Partition Top Hinge is constructed of Zamac die cast metal that is chrome plated then polished. The hinge is designed for use on an 1-1/4" thick pilaster post. The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a American Sanitary Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790. A=1-5/8" |
