American Sanitary Toilet Partition Bottom Hinge
Description

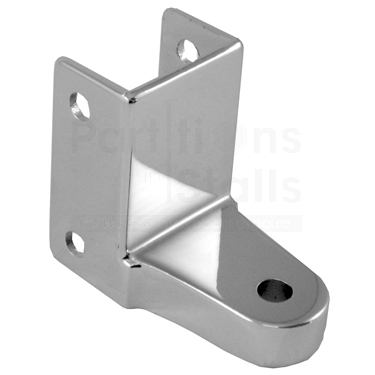

The American Sanitary Toilet Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post. It is constructed of Zamac die cast metal that is then chrome plated and polished. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700. Manufacture part # 3290. Shipped with mounting screws. A=1-5/8"
The American Sanitary Toilet Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post. It is constructed of Zamac die cast metal that is then chrome plated and polished. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700. Manufacture part # 3290. Shipped with mounting screws. A=1-5/8"
| Part # | 9AM280 |
|---|---|
| Availability | In Stock |
| Manufacturer | American Sanitary Toilet Partition |
| Description | The American Sanitary Toilet Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post. It is constructed of Zamac die cast metal that is then chrome plated and polished. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700. Manufacture part # 3290. Shipped with mounting screws. A=1-5/8" |
| Detailed Description | The American Sanitary Toilet Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post. It is constructed of Zamac die cast metal that is then chrome plated and polished. The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700. Manufacture part # 3290. Shipped with mounting screws. A=1-5/8" |
