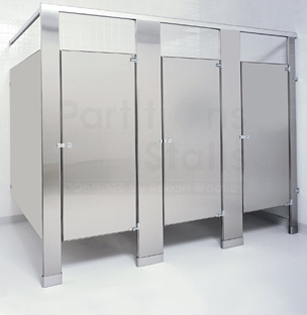

Accurate Stainless Steel Free Standing Partitions

In stock
1 Week Lead Time
Non-Returnable

Part #

SSFSA
$2,500.00

Description

Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (26" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware includedDoors can be either in or out swingUp to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Accurate’s stainless steel free standing bathroom stall partitions are virtually indestructible and retain their gleaming beauty indefinitely. These units combine the strength of #304 stainless steel with a #4 satin finish or textured finish, formed and bonded to a honeycomb core. The face sheets are held rigid and permanently in place by an interlocking strip welded at each corner. Stainless steel components are impervious to just about any substance. Even scratches caused by deliberate vandalism can be removed by buffing. The elegance of their stainless steel components complements any design scheme, either in new construction or for renovations. Stainless Steel is the most expensive material available, but it is also the most aesthetically pleasing.

WELDED CORNER

Corners of panels, pilasters and doors are welded to each other and to the adjacent face sheets.



UPPER DOOR BRACKET

Internal part of the door. A pin goes through door and bracket for three-point bearing and operates in a nylon bushing in upper hinge bracket.



BOTTOM DOOR HINGE

Gravity-positioning hinge provides safe, durable and maintenance free support.



CONCEALED LATCH

With emergency access and ADA level handle.



HONEYCOMB CORE

Made of cellular honeycomb. This type of core provides strong construction and sound attenuation.



VANDAL-RESISTANT FASTENERS

Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.



SHOE CONSTRUCTION

One-piece stainless steel, type 304, with #4 satin finish trim shoes are hemmed top and bottom for rigidity and sleek appearance.



More Information
Part # SSFSA
Availability 1 Week Lead Time
Return Policy Non-Returnable
Manufacturer Accurate Toilet Partition
Special Shipping Type Freight
Description

Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (26" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware includedDoors can be either in or out swingUp to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Detailed Description

Accurate’s stainless steel free standing bathroom stall partitions are virtually indestructible and retain their gleaming beauty indefinitely. These units combine the strength of #304 stainless steel with a #4 satin finish or textured finish, formed and bonded to a honeycomb core. The face sheets are held rigid and permanently in place by an interlocking strip welded at each corner. Stainless steel components are impervious to just about any substance. Even scratches caused by deliberate vandalism can be removed by buffing. The elegance of their stainless steel components complements any design scheme, either in new construction or for renovations. Stainless Steel is the most expensive material available, but it is also the most aesthetically pleasing.

WELDED CORNER

Corners of panels, pilasters and doors are welded to each other and to the adjacent face sheets.



UPPER DOOR BRACKET

Internal part of the door. A pin goes through door and bracket for three-point bearing and operates in a nylon bushing in upper hinge bracket.



BOTTOM DOOR HINGE

Gravity-positioning hinge provides safe, durable and maintenance free support.



CONCEALED LATCH

With emergency access and ADA level handle.



HONEYCOMB CORE

Made of cellular honeycomb. This type of core provides strong construction and sound attenuation.



VANDAL-RESISTANT FASTENERS

Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.



SHOE CONSTRUCTION

One-piece stainless steel, type 304, with #4 satin finish trim shoes are hemmed top and bottom for rigidity and sleek appearance.
